Green Hydrogen and P2X Systems

Beyond electrolysis, P2X encompasses downstream conversion into ammonia, methanol, synthetic fuels, and other carriers. Renova Energy Solutions supports the full chain with integrated engineering—from hydrogen production through to synthesis and storage—leveraging proven multidiscipline coordination.

A short introduction to Electrolyser types, an commonality of Balance of Plant requirements

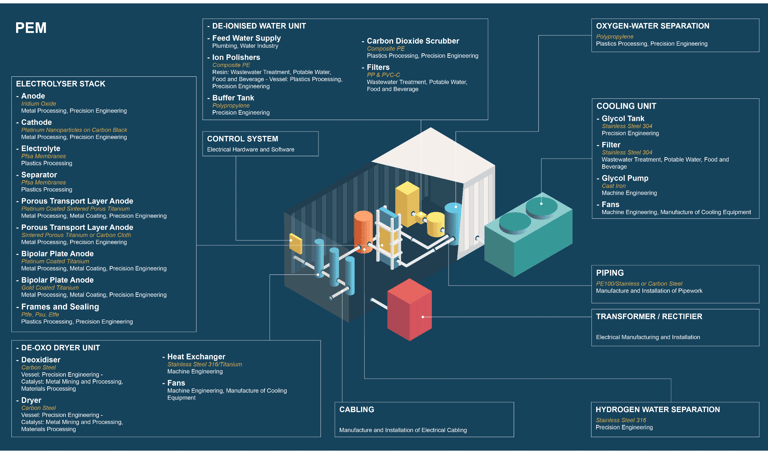

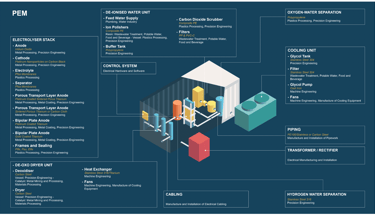

Proton Exchange Membrane (PEM) Supply Chain Diagram

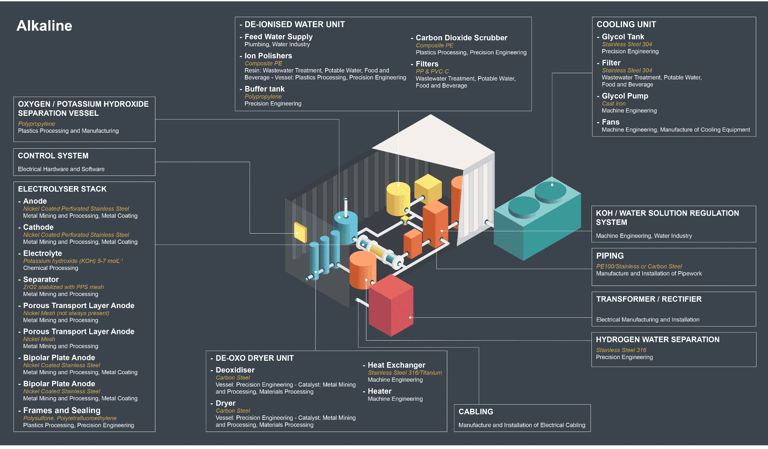

Alkaline Electrolyser Supply Chain Diagram

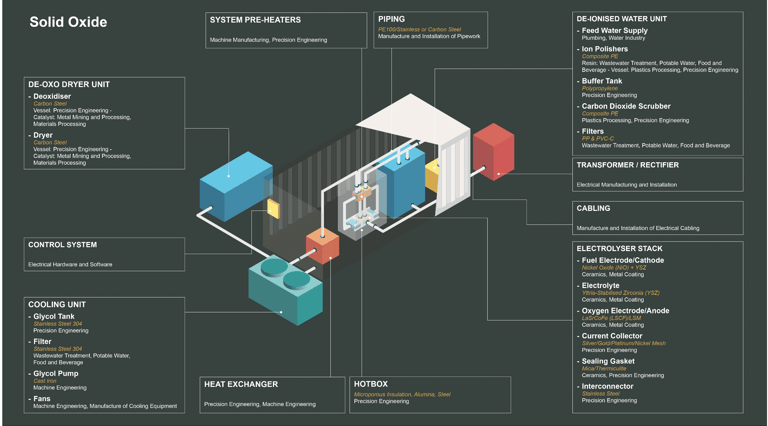

Solid Oxide Electrolyser Supply Chain Diagram

Common requirements for all technology types:

• Universal Requirement: Regardless of electrolysis technology (PEM, Alkaline, SOEC, etc.), a standard kit of electrical and automation equipment is essential for safe, reliable operation.

• Key Electrical Components: Power conditioning (transformers, rectifiers, converters) for wind-to-DC stability; switchgear, cabling, backups.

• Key Automation/Instrumentation: PLC/SCADA monitoring; sensors (pressure, temperature, leaks) and ESD; telecom for remote operations.

• Modeling & Integration Needs: Detailed 3D modeling with pipework; rigorous interface management for subsystem alignment, risk reduction (leaks/faults), and platform stability/scalability.
